01Smart Control Server
Coordinates venue workflows, control terminals and field devices, enabling preset scenes to run at a touch or on a timeline.
- Preset scenes and timed workflows
- Mobile-connected commissioning
- Multiple standard signal inputs
PRODUCTS
Start with the core equipment, then review custom light sources and application examples.
Core equipment is grouped by central control, power distribution, network, signal, decoding and low-voltage driving. Expansion devices and custom light sources are grouped by use, while centerpieces remain banquet application examples.
← Home
PRODUCTS · APPLICATIONS · PROJECT PATHSUse these pages for initial assessment; final configurations are confirmed by project.
SYSTEM VALUE
Plan control, power and signal together for easier installation, commissioning and future expansion.

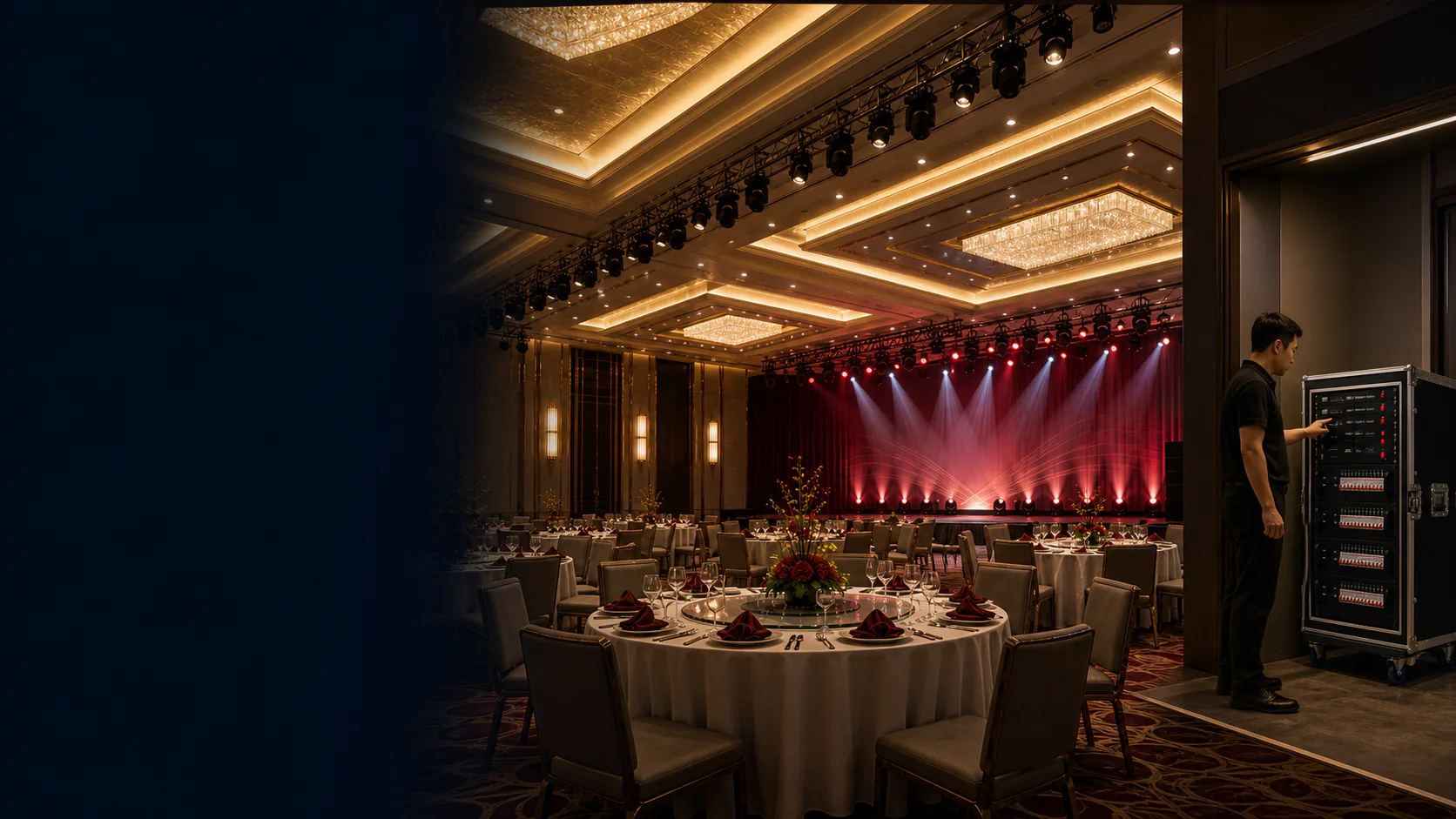

Baihe reviews existing fixtures, wiring and scope to identify what may be retained and what needs to be added. Savings and implementation are estimated by project.PRODUCT FILES / PRODUCT DOWNLOADS
Available manuals, software, fixture libraries and wiring files are organized by product.
CORE EQUIPMENT
Six core device categories cover central control, power distribution, networking, signal relay, decoding and low-voltage driving.
Review them in system order—central control, smart power, network expansion, signal relay, wireless decoding and low-voltage driving—then confirm the combination for the venue and fixtures.
01

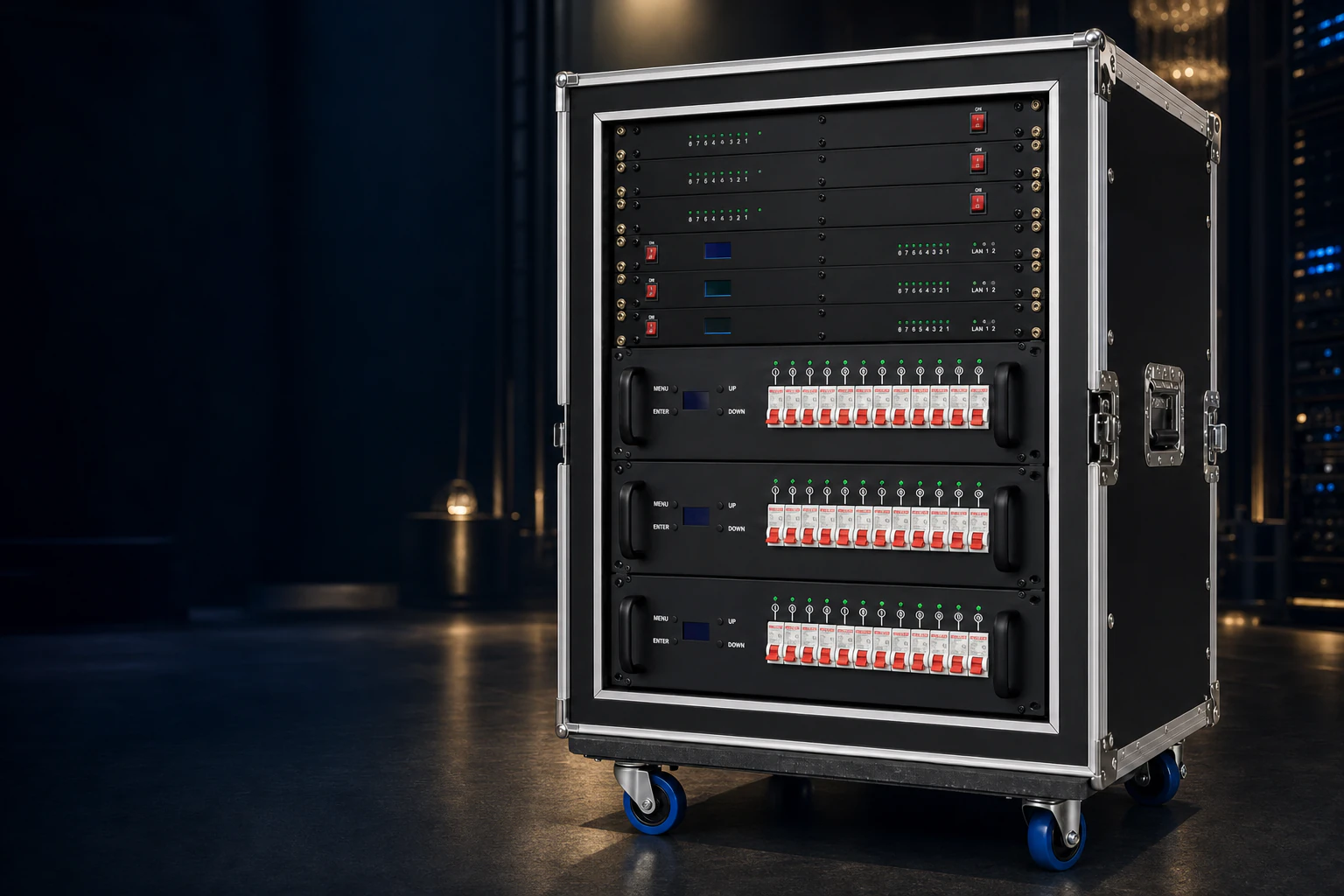

02Smart Power Cabinet
The smart cabinet combines distribution, protection and control in one factory-wired enclosure, creating a clear, maintainable power foundation for permanent installations.
- Integrated power and control
- Factory pre-wiring
- Scales to venue size
03Art-Net Network Extender
Distributes Art-Net / DMX control across large or multi-zone venues so fixtures and decoder nodes can be connected, commissioned and maintained by zone.
- Multi-output zoning
- Standard network cabling
- Multi-room and large-venue networking
04Shared-series enclosure shown; ports follow the signal-amplifier version.DMX512 Signal Amplifier
Supports DMX512 links that require relay, isolation or branching. It shares the network extender enclosure; interfaces, channel count and operating distance are confirmed by product version and project.
- Shares the network extender enclosure
- DMX512 signal relay and isolation
- Ports and distance confirmed by version
05BHC5 Wireless Pixel Decoder
BHC5 brings wireless control directly to distributed light positions, reducing long signal runs to individual fixtures. It fits centerpieces, scenic props and custom installations; compatible light-source types are confirmed by device version and project for both new builds and retrofits.
- Less signal cabling for distributed lights
- Light-source compatibility confirmed by version and project
- New builds and venue upgrades
APPLICATIONS
Banquet centerpiecesProp-integrated lightsScenic structuresStarlight & pixelsRetail displaysVenue upgrades
06100W Multi-Purpose Low-Voltage Driver
Provides up to 100W of low-voltage driving and control integration for custom fixtures, banquet centerpieces and prop-integrated lighting. Output voltage, load and channel configuration are confirmed by product version or project plan.
- Up to 100W low-voltage driving
- Centerpieces, props and custom fixtures
- Output and load confirmed by version
APPLICATIONS
Banquet centerpiecesProp-integrated lightingCustom low-voltage fixturesScenic and installation lighting
EXTENDED DEVICES
Extend the system with compact networking, dedicated starlight control and pixel decoding.
The BH-AN100 four-port extender, BH-SK12 12-output controller, BH-909 and quick-connect starlight system serve compact network nodes, starlight installations and larger pixel projects.
4-Port DMX–Art-Net Network Extender
Converts Art-Net / sACN network data into four DMX XLR outputs for compact zones, mobile projects and distributed control nodes. It is a different product from the AN100 100W low-voltage driver.
- Four DMX XLR outputs
- Art-Net / sACN
- USB-C DC 5V power
12-Output Starlight Controller
Provides twelve RGBW outputs with DMX512 input and output for zoned starlight ceilings, backdrops and large point-light installations.
- 12 RGBW outputs
- DMX512 input and output
- DC12V / 24V power
Art-Net Pixel Decoder
Provides eight pixel outputs and wired Art-Net networking for zoned mapping and dynamic effects across large scenic or spatial installations.
- 8 pixel outputs
- Wired Art-Net networking
- Large-scale pixel mapping
18650 Portable Power Supply for Centerpiece Lights
Portable power for centerpiece lights and other 24V low-voltage lighting, suited to banquet layouts where fixed cabling is impractical or positions change frequently. The enclosure combines 24V input, 24V output and dual USB auxiliary outputs.
- 24V 3Ah portable power
- LG 18650 cells
- 24V input / 24V output
- Dual 5V USB outputs
APPLICATIONS
Banquet centerpiece lightsPortable display lightingTabletop layouts without fixed cabling24V decorative lighting
UCS512C Point-Source Decoder Board
The UCS512C point-source decoder board performs the decoding stage in a point-light control chain; it is not a light source. Power, interfaces, output channels, compatible protocols and paired light sources are confirmed by board version and project.
- Decoder board, not a light source
- For point-light control chains
- Electrical and interface details confirmed by version
APPLICATIONS
Point-light control systemsCustom scenic lightsProp-integrated lightingProject-specific integration
Quick-Connect Starlight System
Connects starlight strings through a quick-connect controller for efficient coverage of ceilings, backdrops and architectural outlines.
- Quick-connect daisy chain
- Full-color RGB
- Efficient area coverage
CUSTOM LIGHT SOURCES
Choose candle bulbs, round boards, annular modules and strips for the product structure and required effect.
Confirmed specifications are listed in the catalogue; dimensions, interfaces and control still follow the finished-product design. UCS512C is listed separately as a point-light decoder board, not a light source.
10W RGBW Pixel Light
Individually addressable RGBW light for chases, waves, breathing effects and mapped patterns.
- DC24V · RGBW four-in-one
- Individual addressing
- Ceilings and scenic structures
16-Lens Full-Color Sky Light Module
A DC24V full-spectrum module for ceilings, backdrops, centerpieces and scenic forms, combining RGBW control with a marked 1800–10000K range and pairing with BH909 or BHC5 for system control.
- 16-lens full-spectrum output
- DC24V · 5W per module
- Pairs with BH909 or BHC5
APPLICATIONS
Ceilings and backdropsBanquet centerpiecesProp-integrated lightingCustom scenic lights
S3 12-Lens RGBCW Light Module
Combines color and high-CRI white output in one DC24V, 12-lens module with the SPI data path marked on the sample board, pairing with BH909 or BHC5. The visible OSRAM and EPISTAR markings describe this sample only and are not a fixed future-batch BOM.
- 12-lens RGBCW
- DC24V · SPI data input and output
- Pairs with BH909 or BHC5
- Full-gamut control; CRI ≥ 90 across the adjustable CCT range
APPLICATIONS
Banquet centerpiecesCustom scenic lightsBackdrops and installationsHigh-CRI decorative lighting
Lotus Phoenix-Tail Candle Bulb
The Lotus Phoenix-Tail Candle Bulb uses DC24V low-voltage power, an E14 base and 3000K warm light for banquet candelabras, centerpieces and decorative fixtures, pairing with the BHC9 decoder for system control.
- Lotus phoenix-tail candle form
- DC24V · E14 · 3000K
- Paired with the BHC9 decoder
APPLICATIONS
Banquet candelabrasCenterpieces and floral lightsDecorative chandeliersProp-integrated lighting
Lotus-Optic PLC RGBCW Bulb
A DC24V E14 bulb with a lotus-shaped optic, integrated power-line communication chip and RGBCW color-plus-white output. Paired with the BHC9 decoder, it supports detailed control in centerpieces, candelabras and custom forms.
- Lotus-shaped optic
- PLC chip · RGBCW
- E14 · DC24V · BHC9 decoding
- Full-gamut control; CRI ≥ 90 across the adjustable CCT range
APPLICATIONS
Wedding candelabrasCenterpieces and vesselsDecorative fixturesProp-integrated lighting
1800K Simulated Flame Candle Bulb
This DC24V E14 simulated flame bulb provides two forms: steady 1800K warm light and a candle-flame simulation. It pairs with the BHC9 decoder for centerpieces, candelabras and compact decorative fixtures.
- Steady 1800K warm light
- Candle-flame simulation
- E14 · DC24V · BHC9 decoding
APPLICATIONS
Centerpieces and candelabrasSmall decorative fixturesVessel-integrated lightingThemed props
3-LED Small Circular Light Module
This compact DC24V, 1.5W three-light round board fits florals, models, props and constrained structures, pairing with BH909 or BHC5 for system control.
- Compact three-light layout
- DC24V · 1.5W
- Pairs with BH909 or BHC5
APPLICATIONS
Florals and modelsProp-integrated lightsDecorative pointsCompact scenic forms
Large Circular Mixed-Light Module
This DC24V, 5W large circular mixed-light module uses a hollow form that fits around stems, connectors or decorative structures while combining different light packages, pairing with BH909 or BHC5 for system control.
- Hollow large circular board
- DC24V · 5W
- Pairs with BH909 or BHC5
APPLICATIONS
Annular floral vesselsStems and connectorsDecorative formsCustom fixture modules
RGBW Addressable Light Strip
This DC24V RGBW addressable strip is available in six-point-per-control and three-point-per-control versions. It pairs with BH909 or BHC5 for linear dynamic effects that combine color and white light.
- DC24V · RGBW
- 6-point / 3-point controllable segments
- Pairs with BH909 or BHC5
- Full-gamut control; CRI ≥ 90 across the adjustable CCT range
APPLICATIONS
Ceilings and outlinesBanquet centerpiecesProp-integrated lightingLinear dynamic forms
RGBCW Addressable Light Strip
This DC24V RGBCW addressable strip is available in six-point-per-control and three-point-per-control versions, combining color with cool and warm white while pairing with BH909 or BHC5 for system control.
- DC24V · RGBCW
- 6-point / 3-point controllable segments
- Pairs with BH909 or BHC5
- Full-gamut control; CRI ≥ 90 across the adjustable CCT range
APPLICATIONS
Mixed-color formsWhite-light decorationCeilings and backdropsProp-integrated lighting
DC24V Standard Illumination Strip
This DC24V standard illumination strip provides steady general and outline lighting and can be integrated through BH909 or BHC5. CCT, power and LED density are confirmed for the installation and project.
- DC24V standard illumination
- Project-confirmed CCT, power and density
- Integration through BH909 or BHC5
APPLICATIONS
Banquet-hall illuminationArchitectural and scenic outlinesCenterpiece and prop fill lightLighting retrofits
CONTROLLED APPLICATION
Centerpieces demonstrate how equipment is integrated into banquet products.
These examples show how central control, decoding and low-voltage driving connect distributed lights. Control, power and installation are confirmed for the product structure, quantity and project.
CONTROLLED APPLICATIONCarousel Lighting Centerpiece
Layered shades, point lights and carousel details create a rich table feature. Paired with BHC5 wireless control, the centerpiece can join venue-wide lighting cues.
- Hotel banquet settings
- Custom color and size
- Venue-wide synchronization
CONTROLLED APPLICATIONSilver Leaf Candelabra Centerpiece
Silver branches and layered candle points form an airy tall centerpiece for wedding tables, entrances and premium banquet displays.
- Airy sculptural form
- Layered candle points
- Connects to the Baihe control system
CONTROLLED APPLICATIONGold Leaf Candelabra Centerpiece
A 1500mm gold-leaf candelabra that adds warm vertical presence to grand banquet halls, with project-specific color and size options.
- 1500mm tall format
- Warm gold ambience
- Custom color and size
CONTROLLED APPLICATIONWhite Floral Candelabra Centerpiece
A white frame, mirrored floral tray and multi-arm lamp cups combine into a modular centerpiece tailored to each banquet theme.
- Modular components
- Integrated floral lighting
- Premium wedding display
CONTROLLED APPLICATIONWhite Floral Lighting Centerpiece
Floral volume, ringed lamp cups and individual points create a complete table focal point synchronized with stage, architectural and prop lighting.
- Table focal point
- Layered lighting structure
- Whole-venue synchronization
CONTROLLED APPLICATIONWireless Centerpiece & Prop Lighting
Connects lighting integrated into centerpieces, props and custom scenic objects to the venue-wide control system.
- Wireless DMX512 dimming
- Custom RGB / RGBW
- Venue-wide synchronization
